Cole Parmer Peristaltic Pump

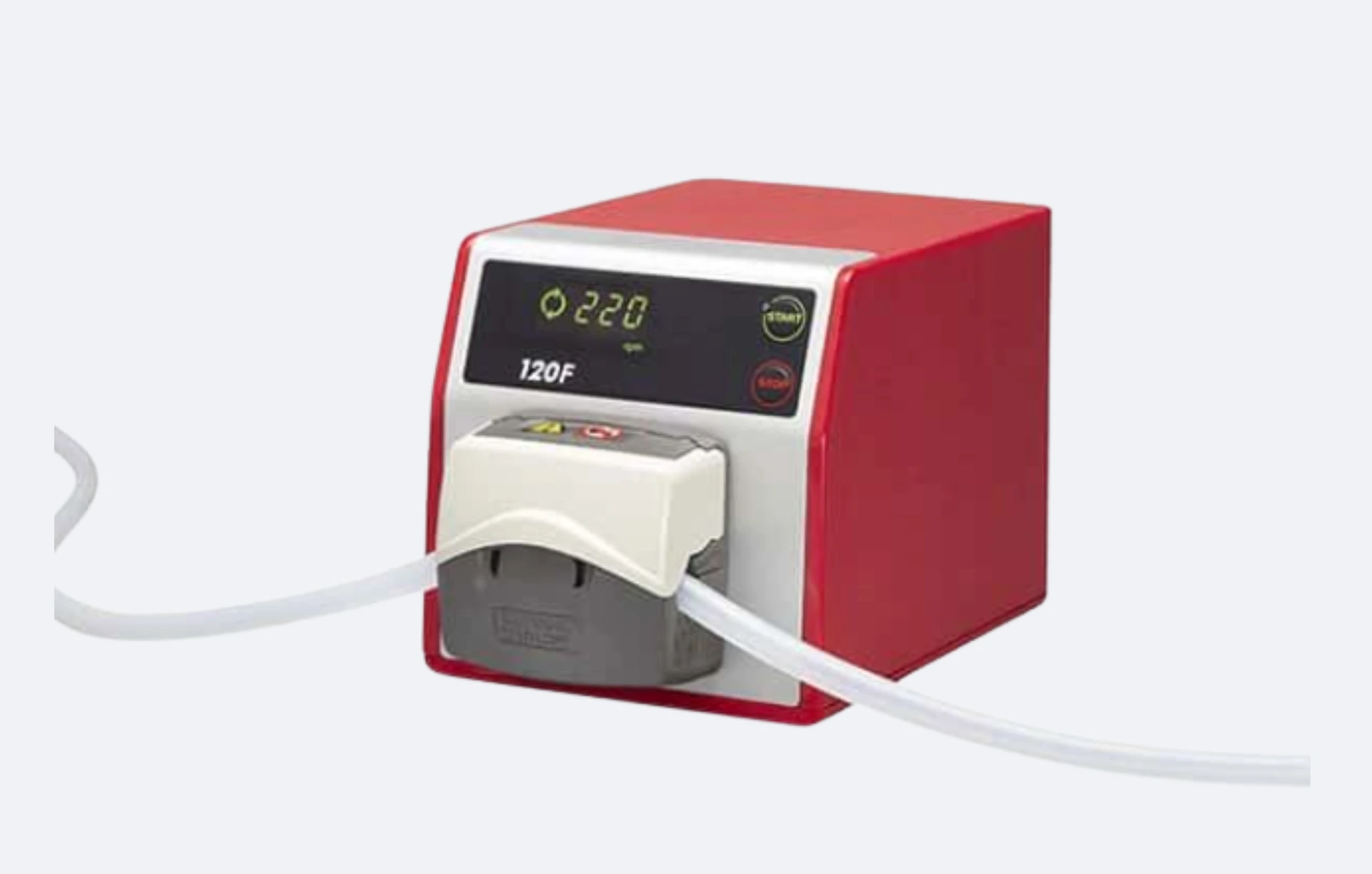

Watson-Marlow 120F/DV Fixed-Speed Pump System, 220 rpm, Single-Channel, 4-Roller Pump Head; 90 to 264V

Cat no.: 50141-97    Learn more   Catalogue

Specifications :

  • Series100
  • Control TypeManual
  • Max RPM220
  • Number of Channels1
  • Max Flow Rate (mL/min)190
  • Min Flow Rate (mL/min)4.4
  • Drive120F
  • Pump Head114DV flip-top four-roller
  • TubingOnly use with Pumpsil® platinum-cured silicone pump tubing
  • Tubing sizes accepted0.5 to 4.8 mm bore tubing with 1.6 mm wall
  • Drive IP ratingIP 31
  • Accuracy±1% speed accuracy
  • Power (VAC)90 to 264
  • Number of Rollers4
  • Power (Hz)47 to 63 Hz
  • Width (cm)11, Height (cm)11.2, Length (cm)19.3
  • Housing MaterialABS plastic pump housing
  • Rotor MaterialAluminum (anodized), FPM rubber, IXEF (polyarylamide), polyacrylamide—IXEF (PARA), polytetrafluoroethylene (PTFE) filled polybutylene terephthalate (PBT), PTFE filled PBT, stainless steel
  • Small, stackable pumps require minimal benchtop space
  • Simple operation—requires minimal key presses
  • Smooth IP31-rated housing for easy wipe down
  • 220 rpm drive
  • Single-channel, four-roller, flip-top pump head
  • 3 year warranty
