Implen

Compact high performance UV/Vis spectrophotometer for nanovolume and cuvette applications. Made in Germany.

Applications include dsDNA, ssDNA, RNA, mRNA, miRNA, Oligos, Proteins and Antibodies including dye labeled samples, small molecules in organic solvents, kinetics in a drop and more.

Visit their website

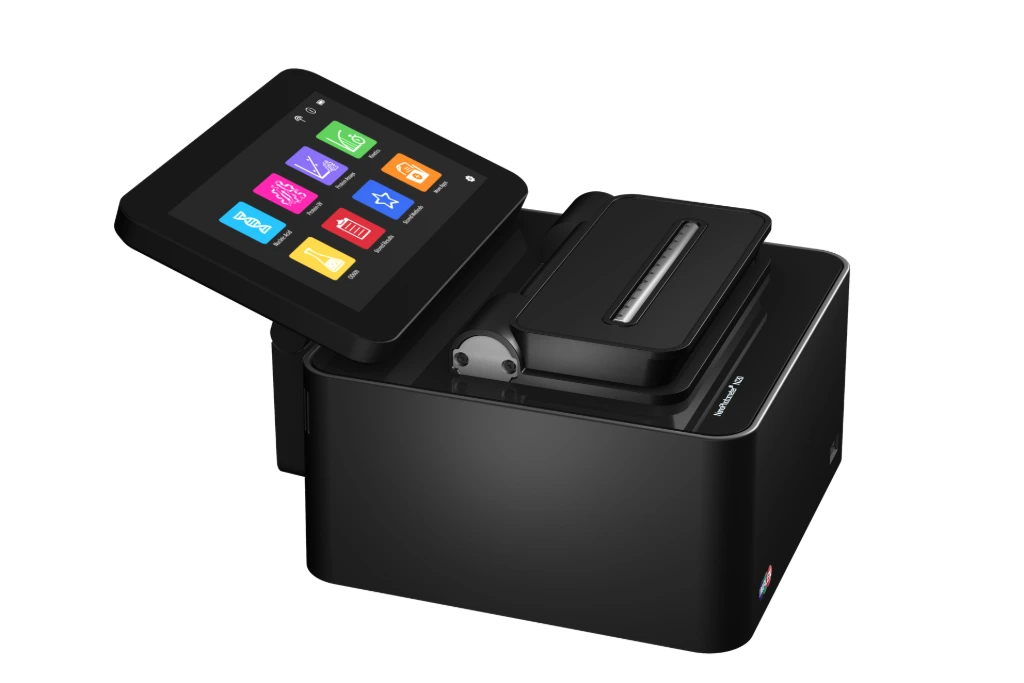

NanoPhotometer® N120

Microvolume High Throughput Spectroscopy.
12-Channel Microvolume Spectrophotometer | 20 seconds per full run | Scan Range 200 – 900 nm

  • Nano volume 12 channels
  • Sample volume 2 - 3.5 ul
  • Measure Time 1.7 sec per sample
  • Wavelength 200 - 900 nm
  • Detection range dsDNA 2 - 8000 ng/ul
  • Detection range BSA 0.06 - 230 mg/ml
  • Path lengths 1 & 0.125 mm
  • Internal Storage 128 GB
  • Xenon flash lamp
  • 1 x 4096 CMOS Array
  • True Path Technology
  • Sample Compression Technology
  • Re-calibration-free
  • Blank control and Sample control

All-in-One Spectroscopy.
Microvolume and Cuvette Functionality | Starting at 0.3 µl | Scan Range 200 – 900 nm
GMP, GLP, GxP Ready 21 CFR Part 11 and IQOQ option*

  • All in one nanospectrometer
  • Sample volume 0.3 - 2 ul
  • Measure Time < 4 sec
  • Wavelength 200 - 900 nm
  • Detection range dsDNA 1 - 16500 ng/ul
  • Detection range BSA 0.03 - 478 mg/ml
  • Path lengths 0.67 & 0.07 mm
  • Internal Storage 64 GB
  • Xenon flash lamp
  • 1 x 4096 CMOS Array
  • True Path Technology
  • Sample Compression Technology
  • Re-calibration-free
  • Blank control and Sample control
  • Built-in Cuvette and Built-in Vortex

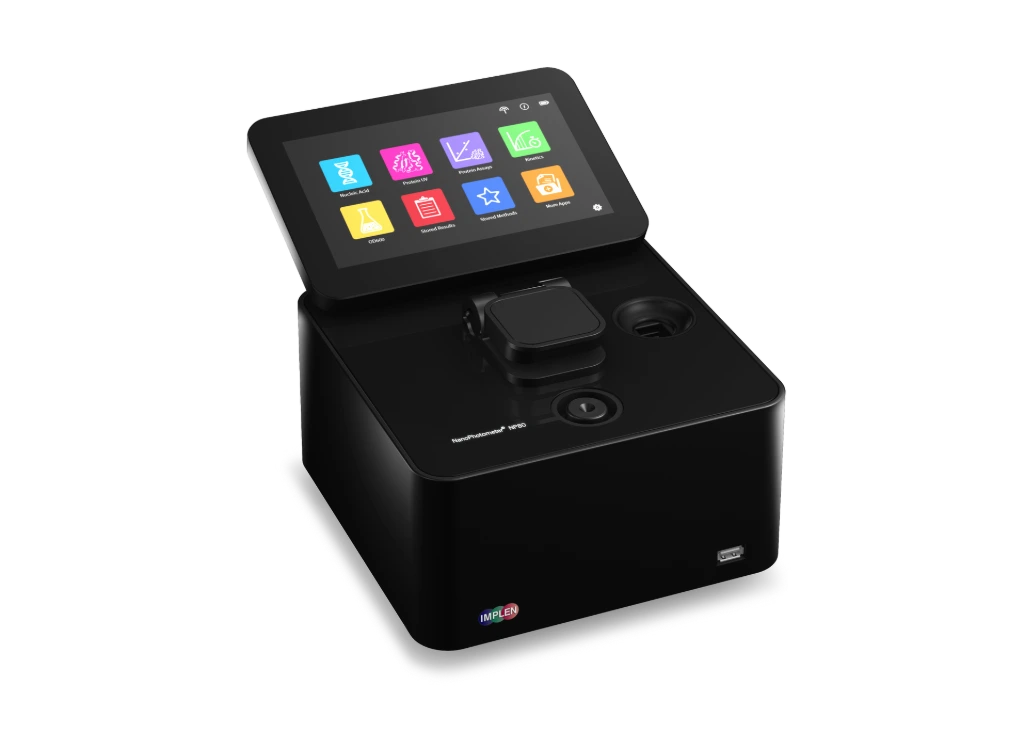

NanoPhotometer® NP80

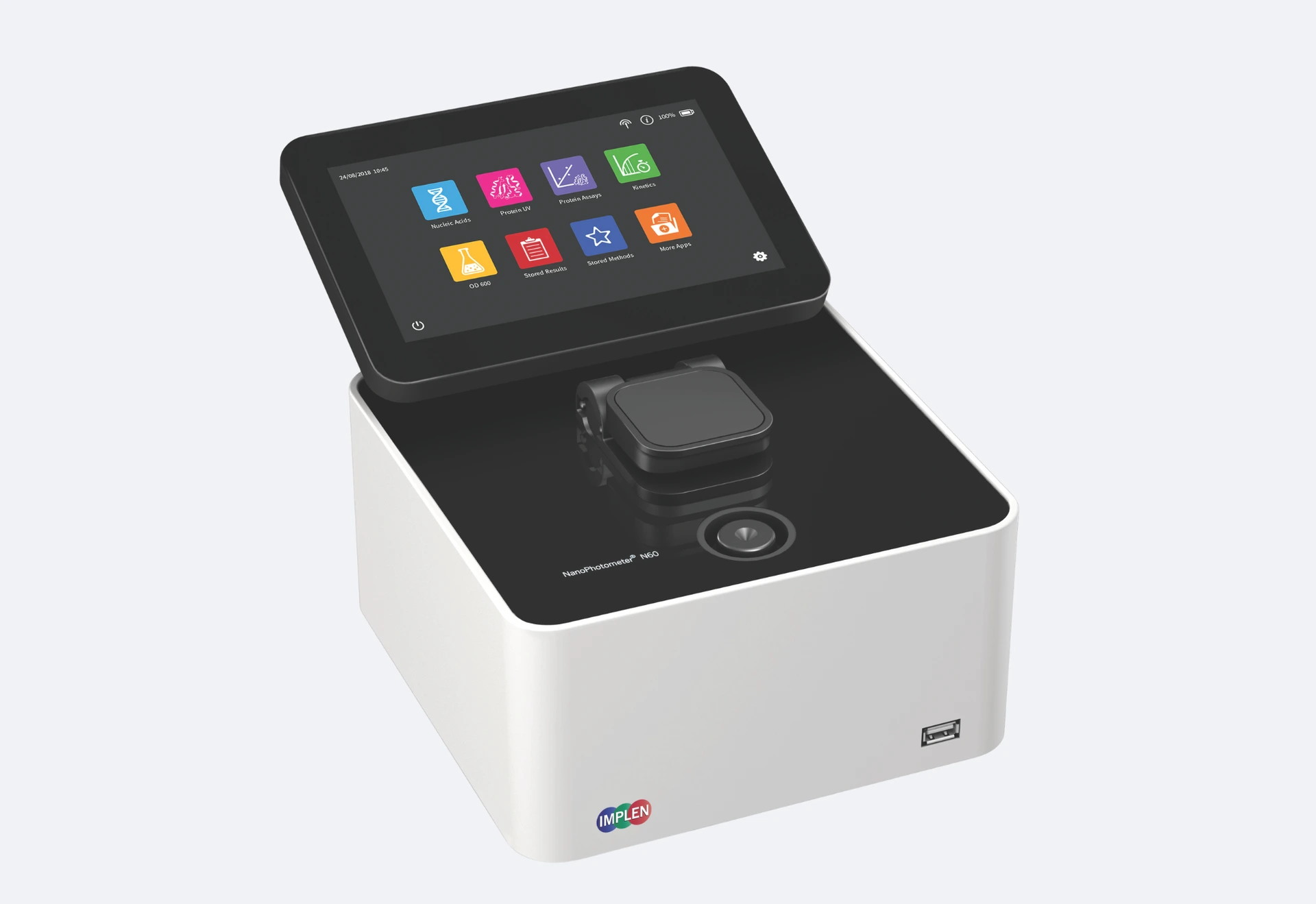

NanoPhotometer® N60

Nucleic Acid & Protein UV-Assay Measurements and more | Starting at 0.3 µl | Scan Range 200 – 900 nm

  • Nanospectrometer
  • Sample volume 0.3 - 2 ul
  • Measure Time < 4 sec
  • Wavelength 200 - 900 nm
  • Detection range dsDNA 1 - 16500 ng/ul
  • Detection range BSA 0.03 - 478 mg/ml
  • Path lengths 0.67 & 0.07 mm
  • Internal Storage 64 GB
  • Xenon flash lamp
  • 1 x 4096 CMOS Array
  • True Path Technology
  • Sample Compression Technology
  • Re-calibration-free
  • Blank control and Sample control
  • Built-in Vortex

Nucleic Acid & Protein UV-Assay Measurements and more | Starting at 0.3 µl | Scan Range 200 – 900 nm

  • Nanospectrometer
  • Sample volume 0.3 - 2 ul
  • Measure Time < 4 sec
  • Wavelength 200 - 650 nm
  • Detection range dsDNA 5 - 7500 ng/ul
  • Detection range BSA 0.15 - 217 mg/ml
  • Path lengths 0.67 & 0.07 mm
  • Internal Storage 64 GB
  • Xenon flash lamp
  • 1 x 4096 CMOS Array
  • True Path Technology
  • Sample Compression Technology
  • Re-calibration-free
  • Blank control and Sample control

NanoPhotometer® NP50

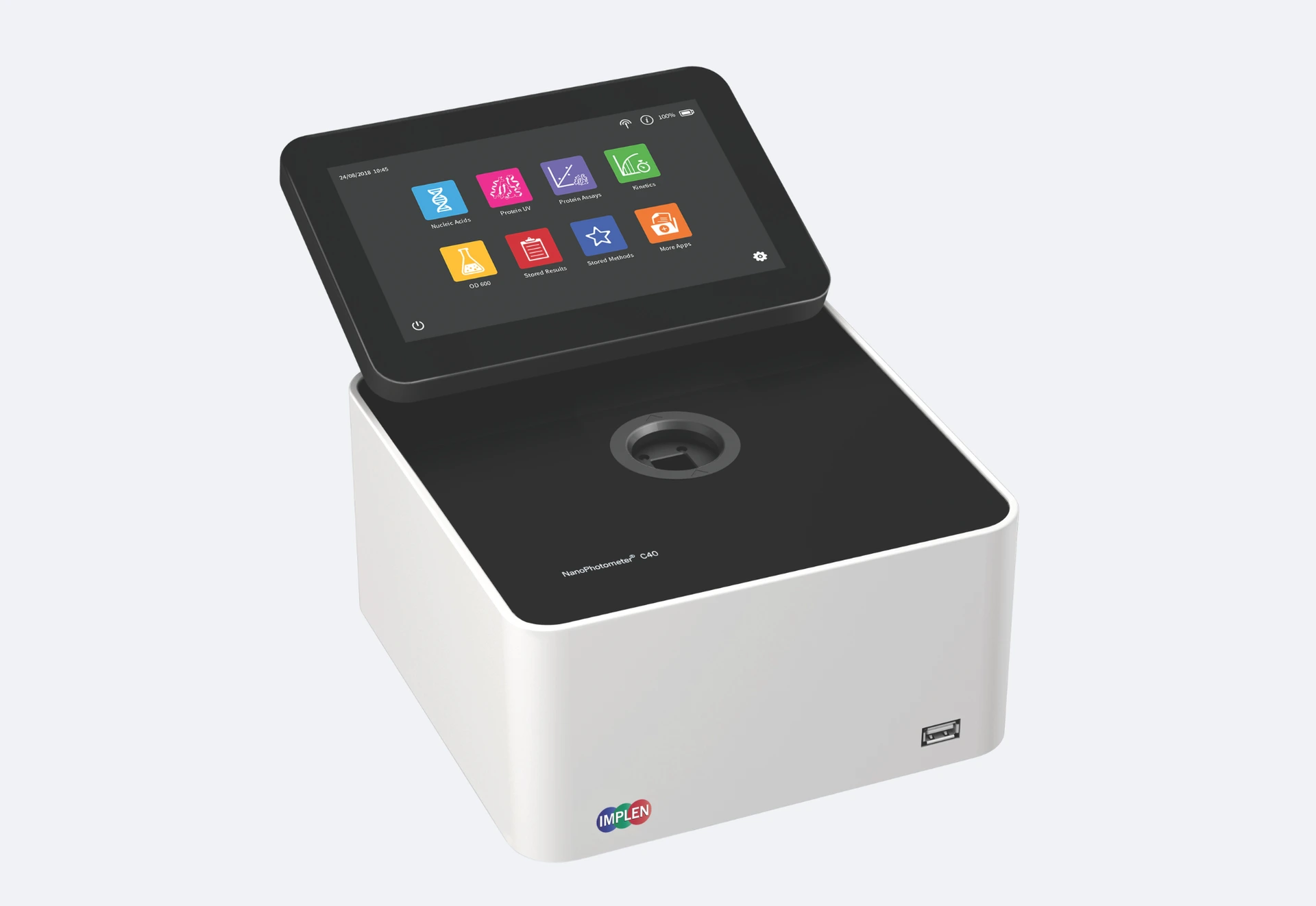

Spectrophotometer C40

Cuvette Spectrophotometer | Temperature Controlled | Scan Range 200 – 900 nm

  • Cuvette spectrometer
  • Sample volume 50 ul - 3 ml
  • Measure Time < 2.5 sec
  • Wavelength 200 - 900 nm
  • Detection range dsDNA 0.1 - 130 ng/ul
  • Detection range BSA 0.003 - 3.7 mg/ml
  • Path lengths 10 mm
  • Internal Storage 64 GB
  • Xenon flash lamp
  • 1 x 4096 CMOS Array
  • True Path Technology
  • Sample Compression Technology
  • Re-calibration-free
  • Blank control and Sample control
  • Built-in Cuvette

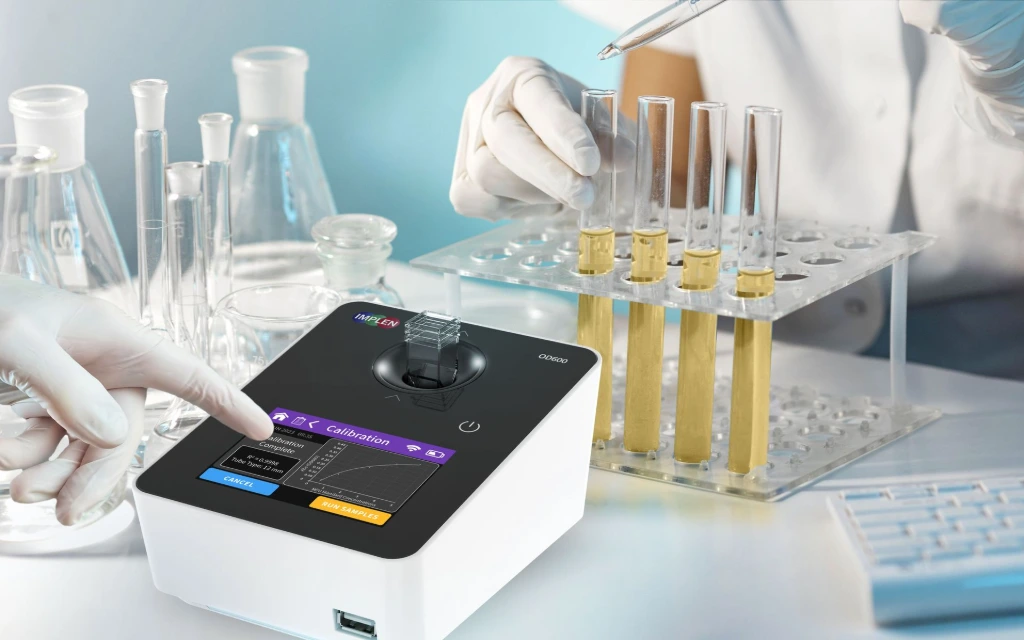

Designed to streamline microbial and cell growth analysis.
Fast, easy, and accurate determination of cell density at 600 nm.

  • Measure Bacterial Growth spectrometer
  • Sample volume 300 ul - 2ml
  • Wavelength 600 nm
  • Reproducibility OD600: @ 1A: < ±0.002 A | McFarland: @ 0 – 8 MFU: ≤ ±0.05 MFU
  • Photometric Range OD600: 0 – 4 A; McFarland: 0 – 16 MFU
  • Photometric Accuracy OD600: @ 1A: < ±0.01 A | McFarland: @ 0 – 8 MFU: ≤ ±0.1 MFU
  • Path lengths 1 & 10 mm
  • Internal Storage 4 GB
  • Built-in Cuvette

Implen OD600®
