Uvitec

Leading molecular biology imaging systems manufacturer based in Cambridge, UK. Advanced gel documentation and Western Blot imaging systems for chemiluminescence, epi-fluorescence and UV techniques. Uvitec Cambridge combines outstanding optical sensitivity with advanced imaging technologies to help researchers reveal even the most challenging signals with confidence.

Visit their website

Gel Documentation Imager

  • High-end and fully automated gel documentation system with 16-bit and 6MP imaging camera.
  • User-friendly system for image acquisition, editing and analysis with license free software: Molecular weight & Quantification & Colony counting.
  • Uvipure® technology, plug-n-play transilluminator, provides high contrast background.
  • Applications for DNA and RNA gels using fluorescent stains (Ethidium Bromide, SYBR, etc.), Colorimetric stained protein gels (Coomassie, Silver stain, etc.), Stain-free application, Colonies, Petri dish.

Gel Imager - Computer Based System



  • Upgradeable camera to Chemilluminescent western blotting
  • 7-position filter wheel for Epi fluorescence

  • Multi application gel imager system
  • Epi blue LED to cover more apps such as GFP, Cy2, FITC
  • Epi UV 254&365nm for TLC application
  • 6-position filter wheel

  • Most simple and compact gel imager system
  • 1-position filter wheel

Gel Imager - Stand Alone System

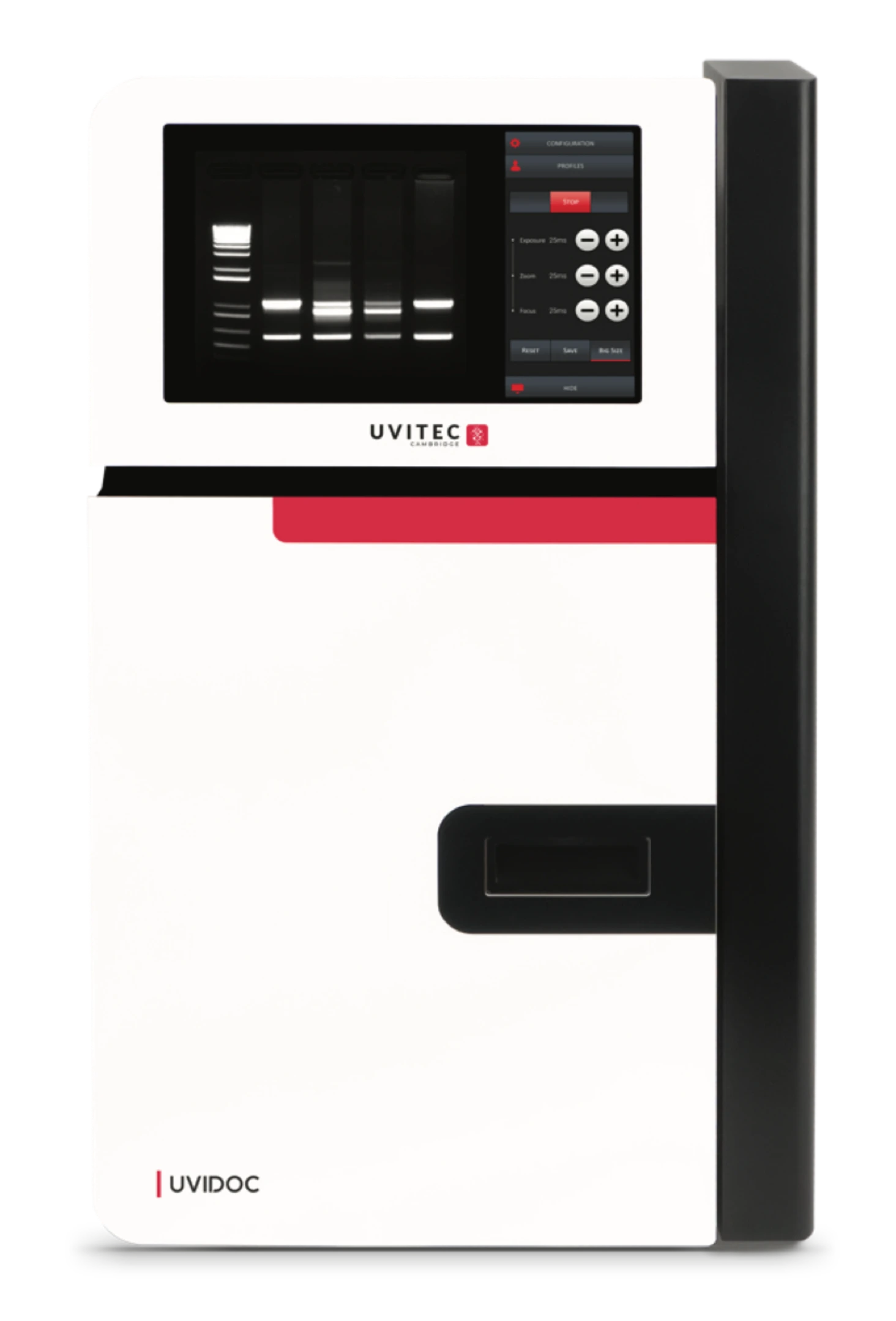

Uvidoc HD6

  • On-board 12.2” HD touch screen
  • Optional Voice control

Chemiluminescence Imager

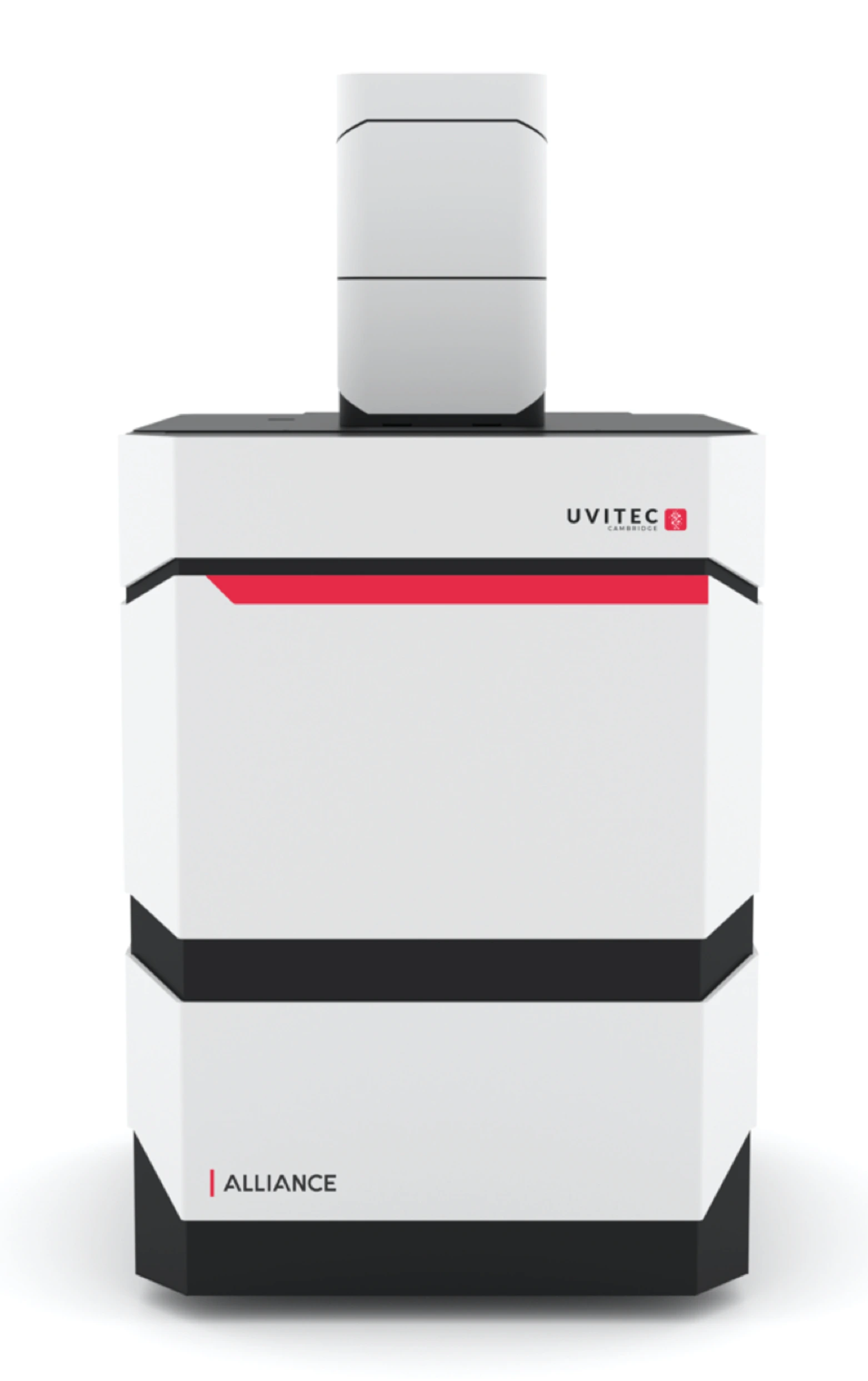

Alliance Q9 Advanced Chemiluminescence Imager

Fully-customizable and versatile multi-application imaging platform

  • Top-end, highest camera specifications and sensivity chemiluminescence and fluorescence imaging system
  • Applications: Western blotting, Fluorescent, Multiplexing fluorescent, Gel documenatation for DNA/RNA/Protein gel and Bioluminescence (In-vivo luciferase)
  • Up to 7-position motorized filter wheel and large choice of up to 17 emission filters  for fluorescence.
  • High resolution camera:

-        16-bit CCD camera, 9.2 megapixels resolution
-        65,535 gray levels
-        Cooling camera -60OC, 3 stage peltier

  • ChromaPure® modules with narrow filters allow minimize crosstalk and overlap issues for fluorescent multiplexing.
  • Fully door aperture & Automatic door
  • License free and unlimited user software: Molecular weight & Quantification & Colony counting (optional).
  • INNOVATIVE

-       312 nm UV-LED technology for longer-term use
-       Widest 15.6-inch touchscreen, mobile sample tray and full door aperture

  • RELIABLE

-       Chromascan© technology providing homogeneous excitation light
-       Up to 7 exciatation simultaneous channels possibilities for multiplexing
-       12 Chromascan modules packs available from 365 nm to 780 nm

  • INTUITIVE

-       User-friendly software for all-in-one acquisition, editing, analysis and customized protocols
-       DeepEye© revolutionary concept for more accurate detection and analysis

  • SENSITIVE

-        Wider f/0.75 lens aperture to ensure detection of the weakest bands
-        3-stage Peltier cooling to -60°C ensuring reduction in background noise
-        9.2 MP scientific camera delivering HD quality images to achieve 65,535 grey levels

NEW! Alliance IRIS Chemiluminescence Imager

The latest generation high-end and stand alone chemi imaging system for Western blots.

Elevate your imaging capabilities with IRIS and gain confidence in your results. Make it visible with IRIS !

UV Instruments

Transilluminators

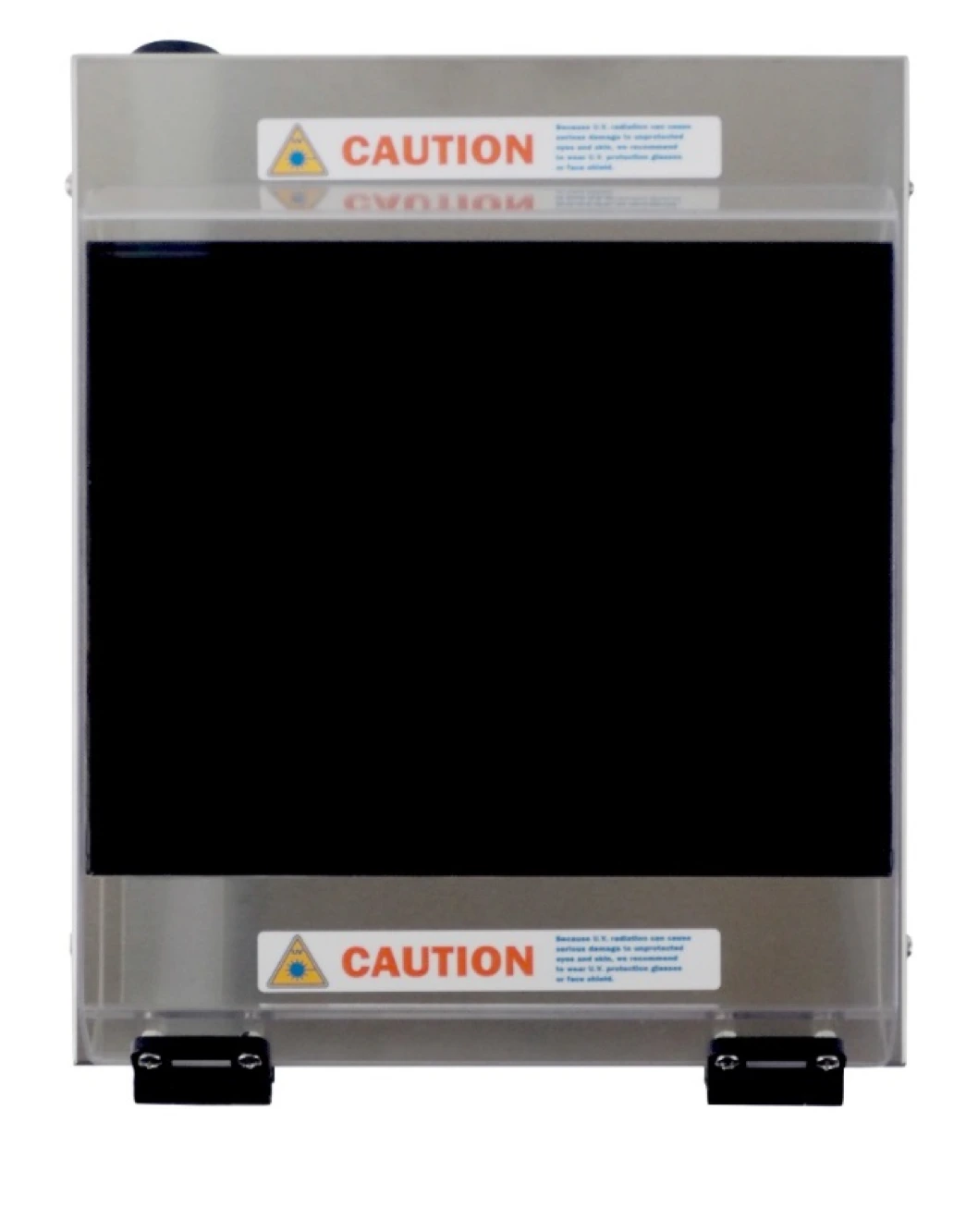

UVIPURE Transilluminator


  • UV Transilluminator for viewing gel stained with Ethidium Bromide, Fluorescent stains (SYBR Green, SYBR Gold, SYBR Safe, Gel Red, Sypro Orange, Sypro Ruby) and Stain-free gel
  • Uses the special dark and uniform surface filter to provide high contrast background, enabling viewing of even the faintest band.

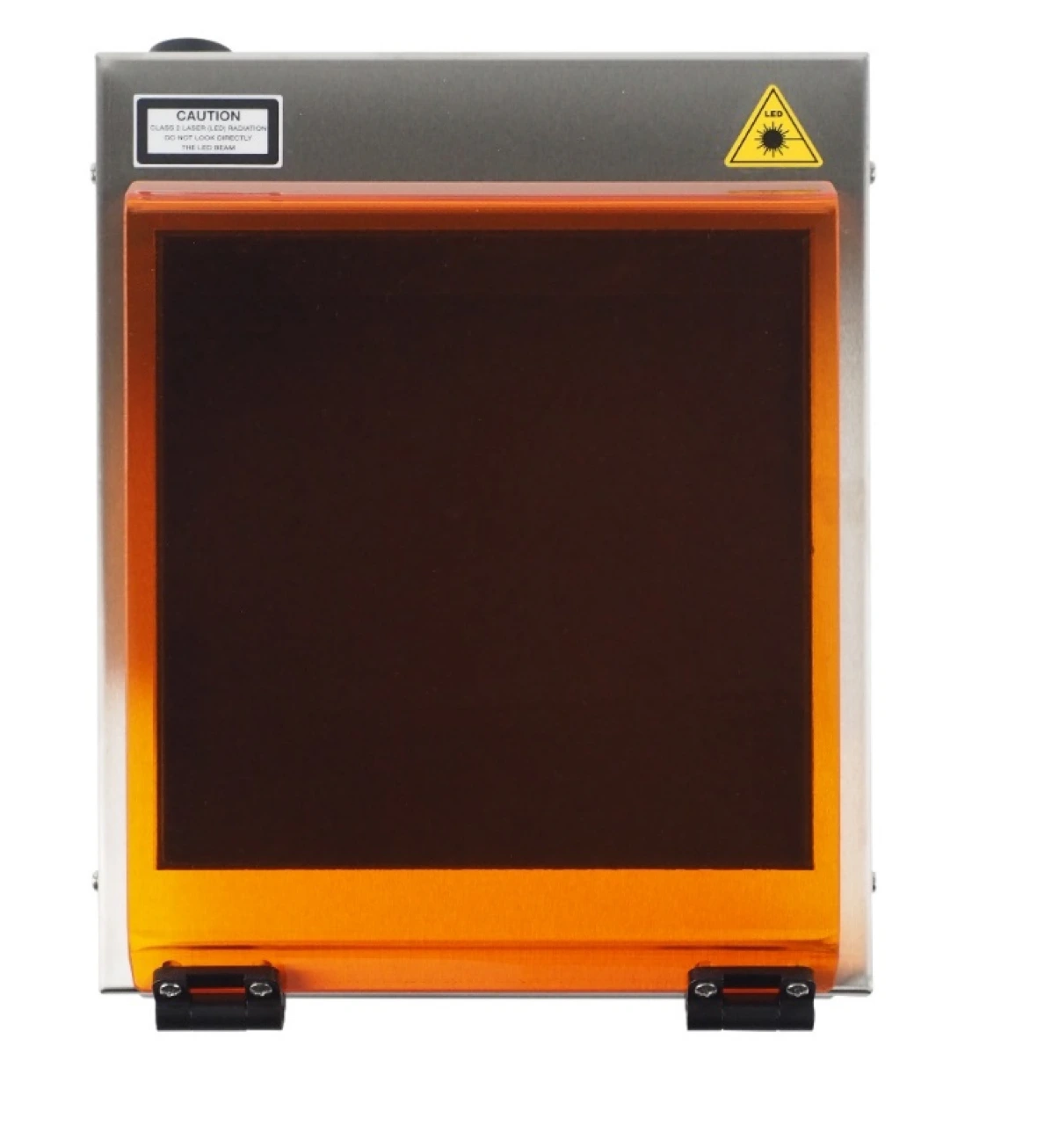

Safelight Transilluminator


  • Transilluminator designed for dual-side irradiation of safe-stained gels to prevent damage caused by UV light to DNA and RNA gels

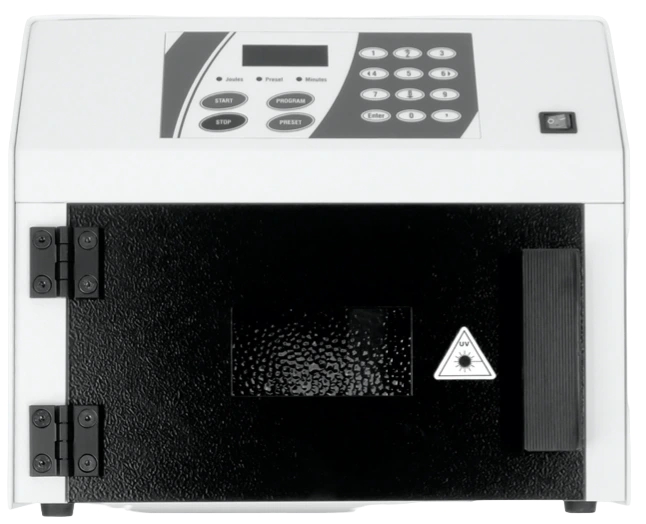

Crosslinker (CL-508)

  • Fully microprocessor-controlled unit, specially designed to deliver the best possible results when binding nucleic acids to membranes.
  • Offers 9 possible presets for energy and time exposure as well as manual selection.
  • The door is safety interlocked against opening during operation.
  • The observation window in the door is UV blocking
  • UV dosage can be set using the membrane switch keypad in either energy units (Joules) or time (seconds)
  • Allows selection of UV tubes with different wavelength - 254 nm, 312 nm or 365 nm – which can be interchanged as required.

Application include:

  • Southern or Northern blotting
  • Fixing of nucleic acids to membranes
  • Reduction of PCR contamination
  • Screening RecA mutation
  • UV viewing cabinet for fluorescent analysis and chromatography
  • Versatile and simple to change the tubes when a new wavelength is required
  • Allows selection of wavelengths 254 nm, 302 nm or 365 nm as required
  • Comes with viewing port with UV absorbing filter

Application for:

  • Reading chromatograms (paper or TLC)
  • Fluorescent analysis in biology, chemistry and forensics
  • Industrial and electronic quality control
  • Applications in geology and mineralogy
  • More compact unit for laboratory inspection of fluorescent samples
  • Can hold one or two LF-106 UV lamps
  • Professional unit for effective viewing with power intensity unrivalled in this field
  • Incoperates 4x15 Watt UV tubes plus one 40 Watt white light bulb
  • Allows for any sigle or dual-wavelenght combination of wavelenght

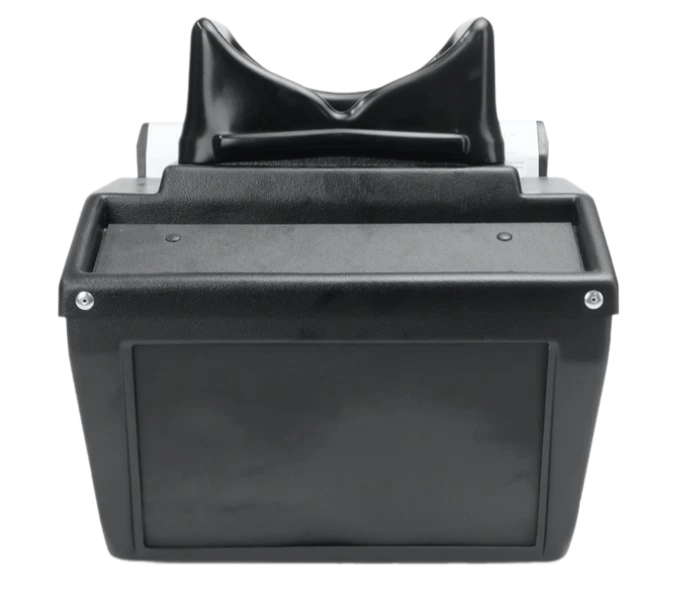

UV Cabinet
