Yamato Scientific Autoclaves
Standard
- Maximum sterilization temperature up to 135°C, suitable for protein modification.
- Supports sterilization of general items, culture media, liquids, and media dissolution.
- User-friendly operation with customizable programs for repeated use.
- Built-in cooling fan reduces cooldown time.
- Front-mounted control panel for easy viewing and operation.
- Operating temp. range: 45~135°C | 45~80°C (preheat temp.) /45~60°C (retain temp.) /65~100°C (dissolution)/ 105~135°C(sterilizing)
- Temp. unit: 0.1°C
- Max. working pressure: 0.255MPa
- Operation functions: Instrument sterilization course, liquid sterilization course, sterilization and retain temp. manual mode

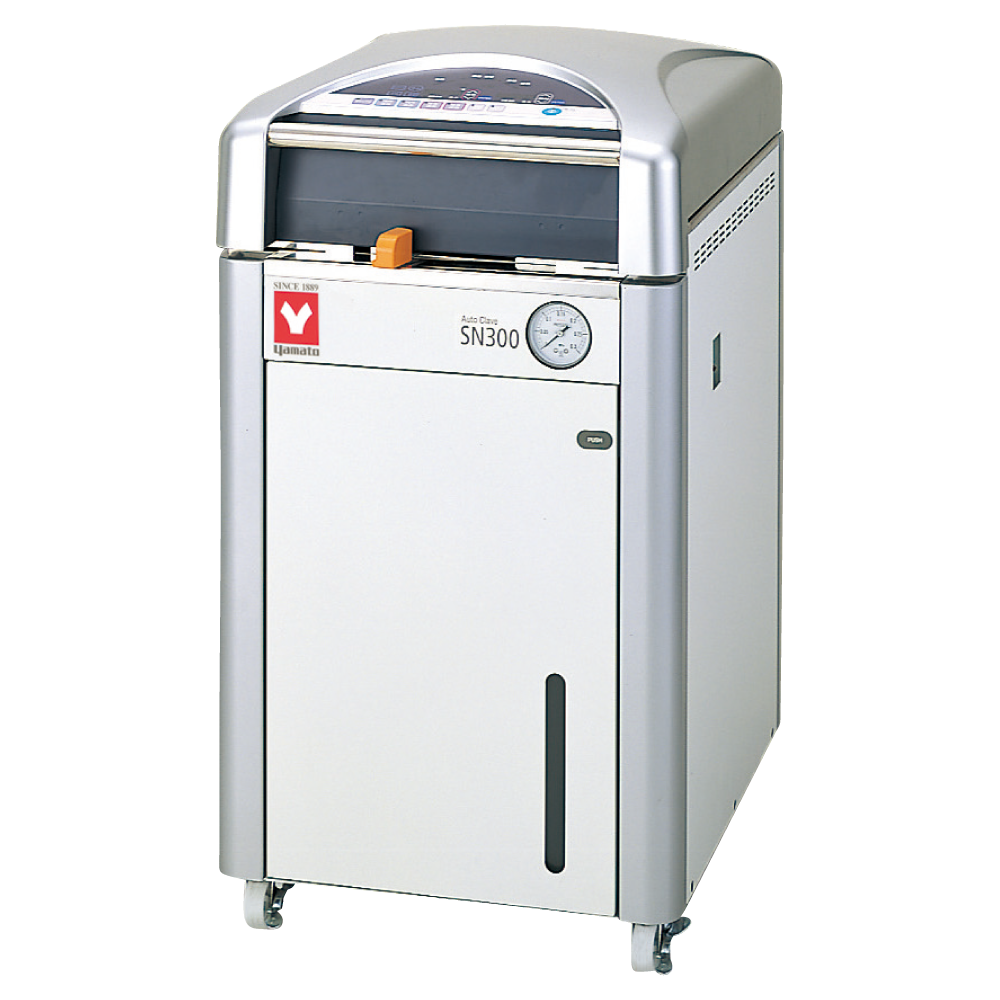

Model | SN210C | SN310C | SN510C | SQ310C | SQ810C | SQL810C | SQL1010C |
Internal effective capacity of chamber | 20L | 32L | 47L | 50L | 80L | 85L | 110L |
Automatic Sterilization, Touch Screen Operation
- 7-inch touchscreen with multi-language support (Chinese, Japanese, English) and three-level authorization system.
- Maximum sterilization temperature up to 138°C, suitable for protein modification.
- Supports sterilization of general items, culture media, liquids, and media dissolution.
- User-friendly operation with customizable programs for repeated use.
- Displays power usage, CO₂ emissions, and operation statistics.

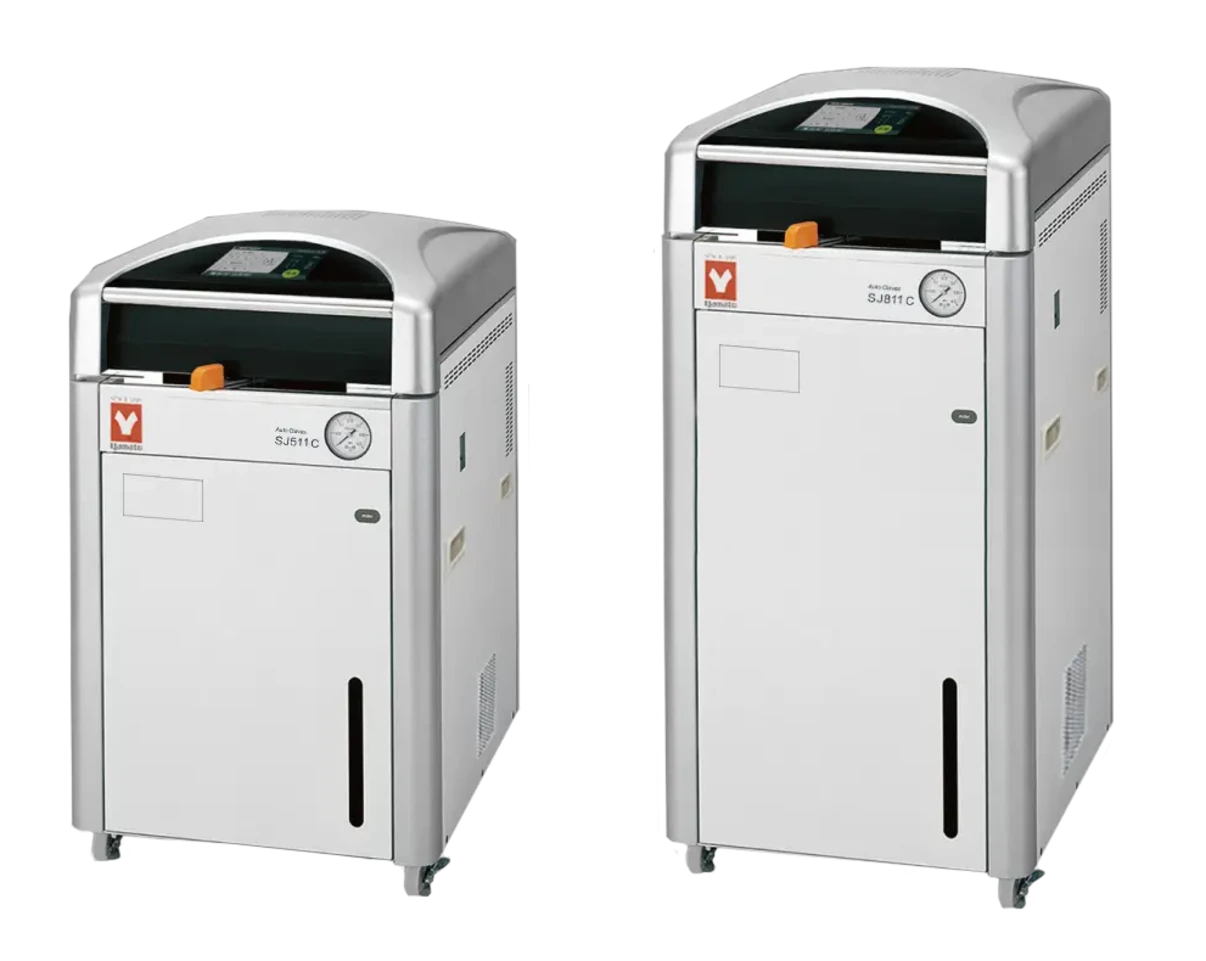

Model | SJ511C | SJ811C |
Internal effective capacity of chamber | 50L | 80L |
Specifications:
- Operating temp. range: 45~138°C: 45~80°C (preheat temp.)/ 45~60°C (retain temp.)/ 60~110°C (dissolution)/ 105~138°C (sterilizing)
- Temp. unit: 0.1°C
- Max. working pressure: 0.3MPa
- Temp. control setting/ display method: 7-inch color LCD touchscreen for display and settings
- Operating functions: Instrument sterilization course, liquid sterilization course, sterilization and retain temp. course, dissolution and retain temp. course

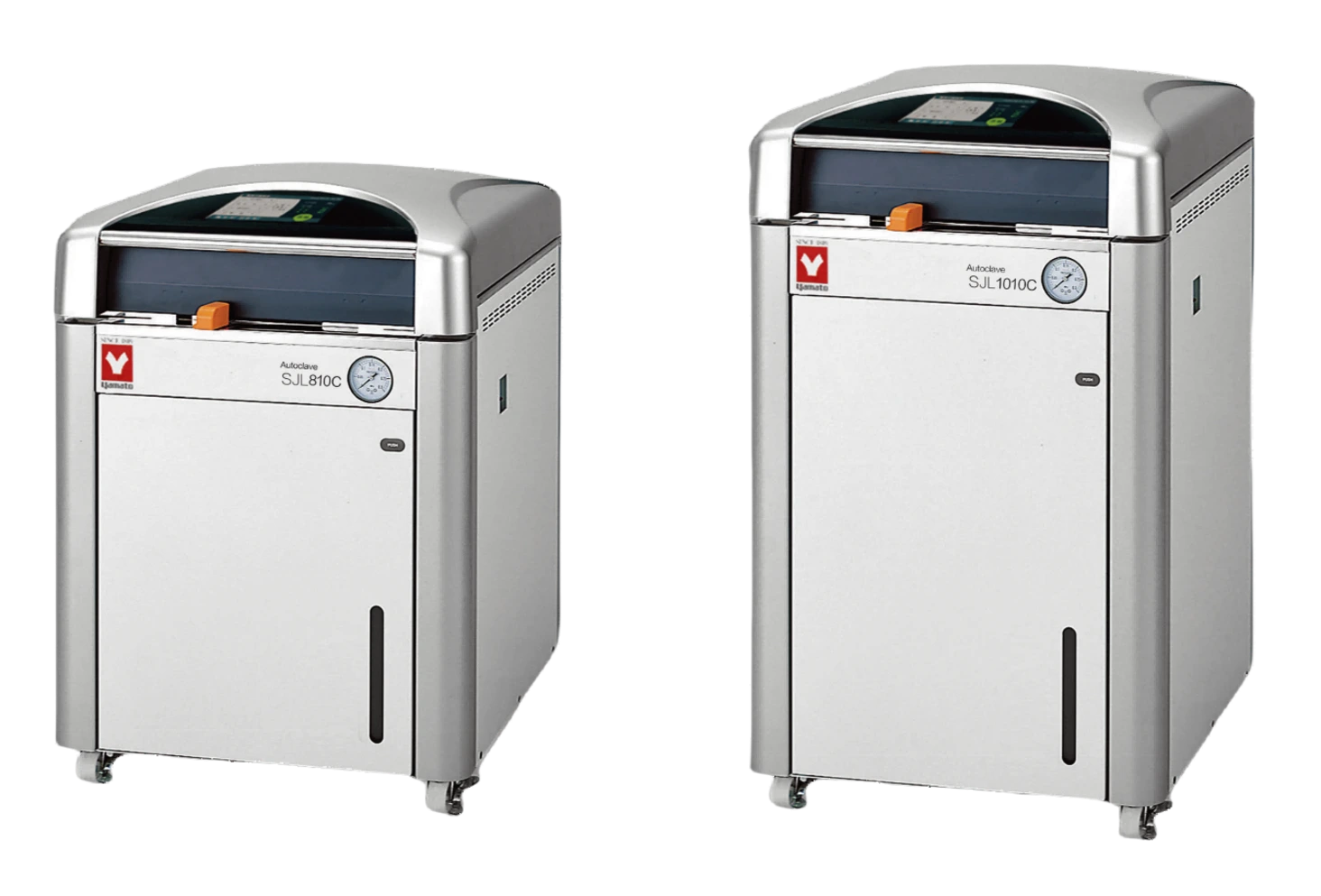

Model | SJL810C | SJL1010C |
Internal effective capacity of chamber | 85L | 110L |
Specifications:
- Operating temp. range: 45~135°C: | 45~80°C (preheat temp.)/ 45~60°C (retain temp.)/ 60~110°C (dissolution)/105~135°C (sterilizing)
- Temp. unit: 0.1°C
- Max. working pressure: 0.255MPa
- Temp. control setting/ display method: 7-inch color LCD touchscreen for display and settings
- Operating functions: Instrument sterilization course, liquid sterilization course, sterilization and retain temp. course, dissolution and retain temp. course

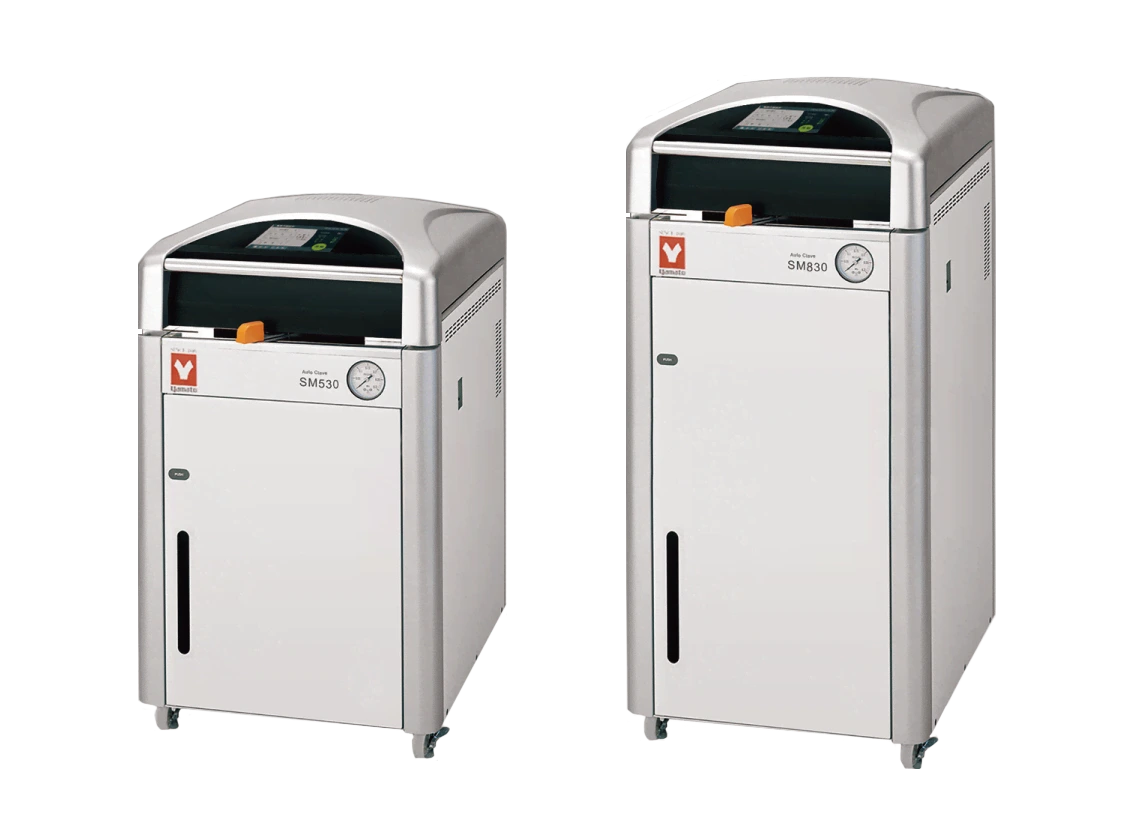

Model | SM510C | SM810C | SM530 | SM830 |
Medical device registration certificate | None | None | Yes | Yes |
Internal effective capacity of chamber | 50L | 80L | 50L | 80L |
Automatic Sterilization, Drying Function
- 7-inch touchscreen with multi-language support (Chinese, Japanese, English) and three-level authorization system.
- Maximum sterilization temperature up to 138°C, suitable for protein modification.
- Supports sterilization of general items, culture media, liquids, and media dissolution.
- User-friendly operation with customizable programs for repeated use.
- Displays power usage, CO₂ emissions, and operation statistics
- Operating temp. range: 45~135°C: 45~80°C (preheat temp.)/ 45~60°C (retain temp.)/ 60~110°C (dissolution)/ 105~135°C (sterilizing)/ 135~150°C (drying)
- Temp. unit: 0.1°C
- Max. working pressure: 0.255MPa
- Temp. control setting/ display method: 7-inch color LCD touchscreen for display and settings
- Operation functions: Instrument sterilization course, Liquid sterilization course, sterilization and retain temp. course, dissolution and retain temp. course, sterilization drying course, drying course
