Yamato Scientific Incubators, Cool Incubators and CO2 Incubator


High-Temp. Incubators | Fixed Temp. Operation, Air Jacket

  • Due to the air jacket heat transfer method, the temperature distribution is uniform.
  • Double door structure reduces heat loss, maintaining a stable constant temperature state.
  • The inner door is made of reinforced glass, allowing observation of the interior

Specifications:

  • System: Airflow natural convection
  • Operating temp. range: Room temp. +5~80°C
  • Temp. fluctuation: ±0.5°C (at 37°C)

Model

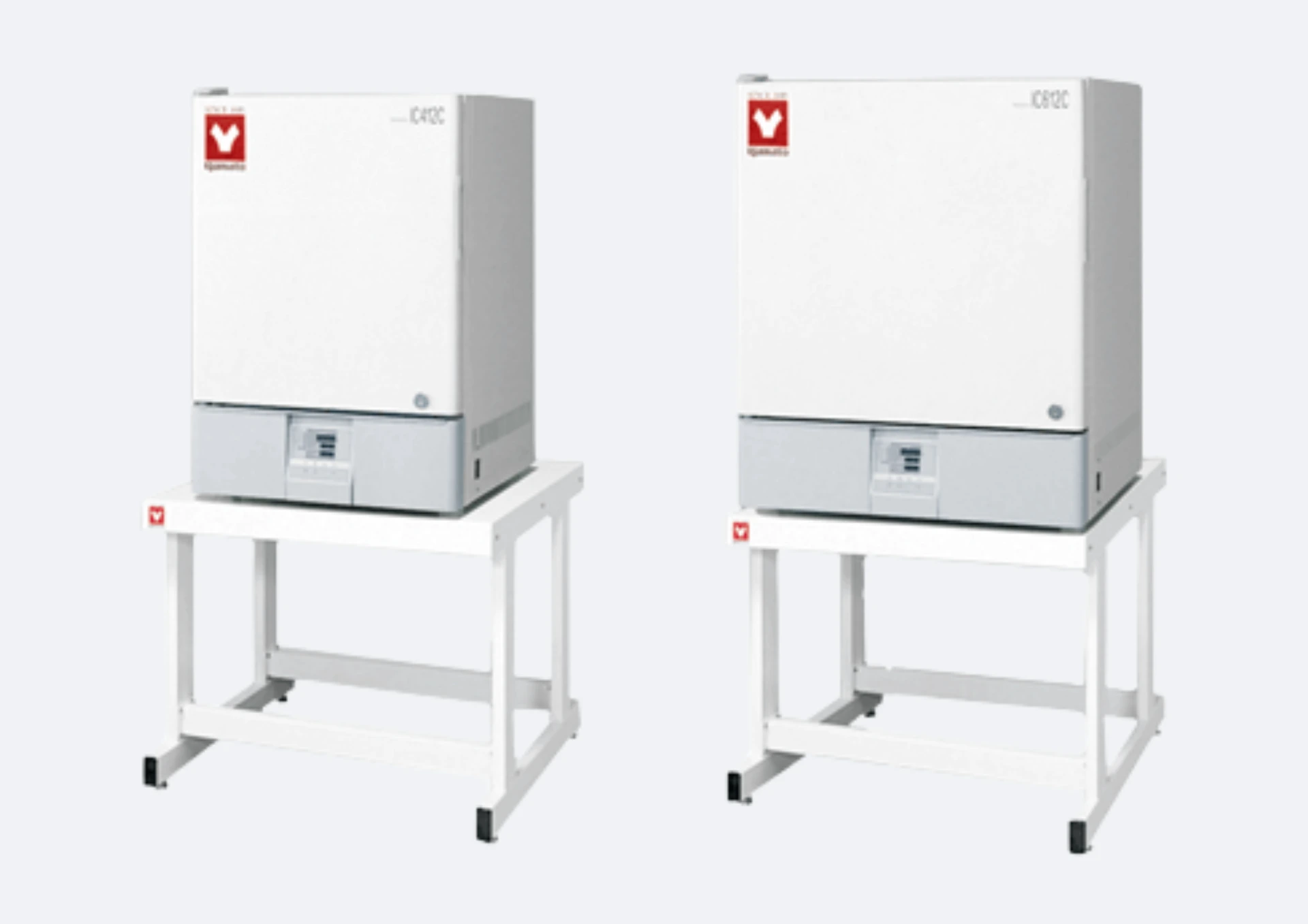

IC412C

IC612C

IC812C

IC912C

Internal capacity

97L

159L

318L

567L

  • Achieved higher precision temperature control and balanced internal chamber distribution through forced circulation by an internal fan.
  • Double door structure reduces heat loss, maintaining a stable constant temperature state.
  • Inner door is made of reinforced glass, allowing observation of the interior.

Specifications:

  • System: Forced convection
  • Operating temp. range: Room temp. +5~80°C
  • Temp. fluctuation: ±0.1°C (at 37°C)

Model

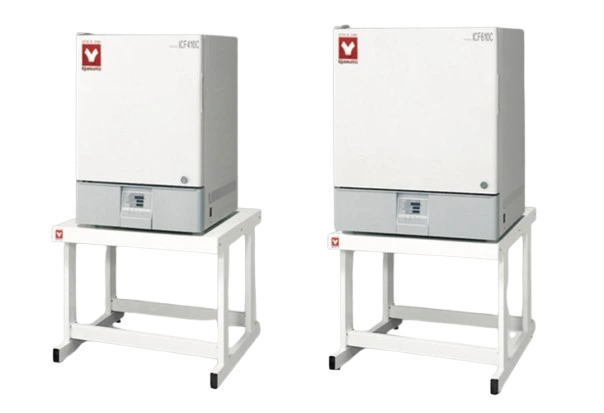

ICF410C

ICF610C

ICF810C

ICF910C

Internal capacity

89L

147L

294L

524L

High-Temp. Incubators | Fixed Temp. Operation, Air Jacket Type, High Temp. Uniformity

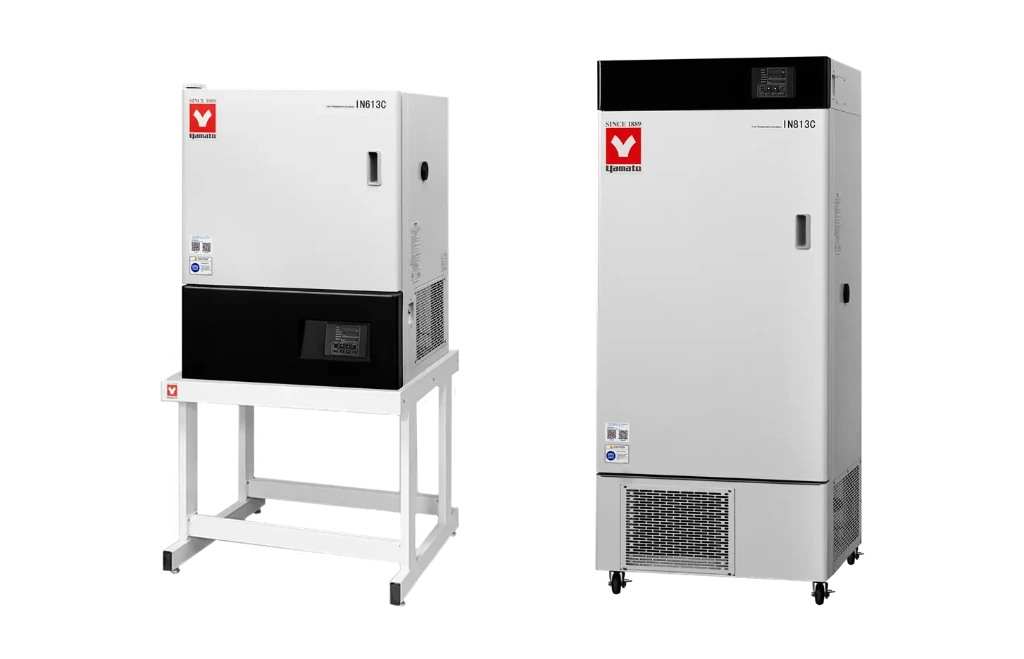

Low-Temp. Incubators | Program Operations

  • High-precision temperature control with uniform chamber distribution via forced fan circulation.
  • Large hollow tempered glass door improves visibility and insulation.
  • Inner glass door enhances insulation and minimizes temperature fluctuation during observation.
  • Defrost cycle adjustable based on compressor operating time.
  • Automatically resumes operation after power outage under preset conditions.

Specifications:

  • System: Forced convection
  • Operating temp. range: -10~60°C
  • Temp. fluctuation: ±0.5°C

Model

IN613C

IN613CW

IN813C

IN913C

Viewing window


W 516 x H 416 mm



Internal capacity

143L

143L

285L

624L

  • Upper chamber: constant temperature with timer function and overheat protection.
  • Lower chamber: low-temperature incubator with 6 programs (10–30 segments) and precise, uniform control via forced air circulation.
  • Inner glass door improves insulation and reduces temperature fluctuation during observation.
  • Defrost cycle adjustable based on compressor operating time.
  • Automatically restarts after power outage under preset conditions.
  • Both chambers are equipped with door locks.

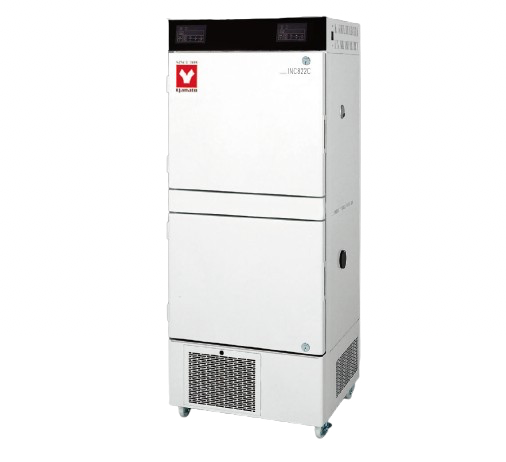

Model: INC822C

Basic structure

Lower chamber: low temperature incubator

Upper chamber: constant temperature incubator

Operating temp. range

-10~60°C

Room temp. +5~80°C

Temp. fluctuation

±0.5°C

±0.1°C (at 37°C)

System

Forced convection

Natural convection

Internal dimensions

143L

150L

2-Chamber Incubators | Air Jacket Type

1 product can simultaneously perform high temperature incubation and low temperature incubation.

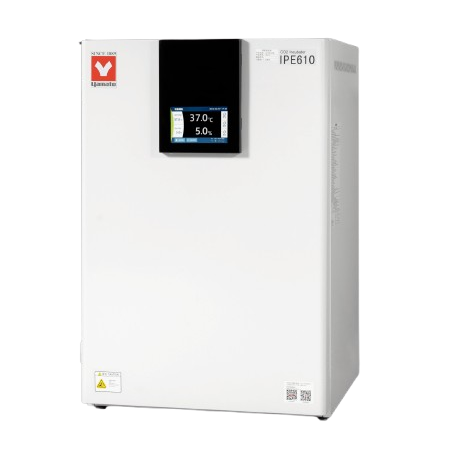

CO2 Incubator | Air Jacket Type, Dry Heat Sterilization

  • Designed to support dry heat sterilization at 160 °C for 2 hours in compliance with pharmaceutical standards
  • Equipped with a dedicated sterilization program
  • Integrated HEPA filtration system continuously purifies chamber air
  • to minimize contamination risk
  • Inner door is constructed of reinforced glass to allow clear observation of the chamber interior
  • High-precision, long-life CO₂ sensor can withstand sterilization at 160 °C without removal, thereby reducing the risk of contamination
  • Temp. control range: Room temp. +5~60°C
  • Touch screen: 7-inch color touch screen
