Yamato Scientific Ovens and Vacuum Ovens

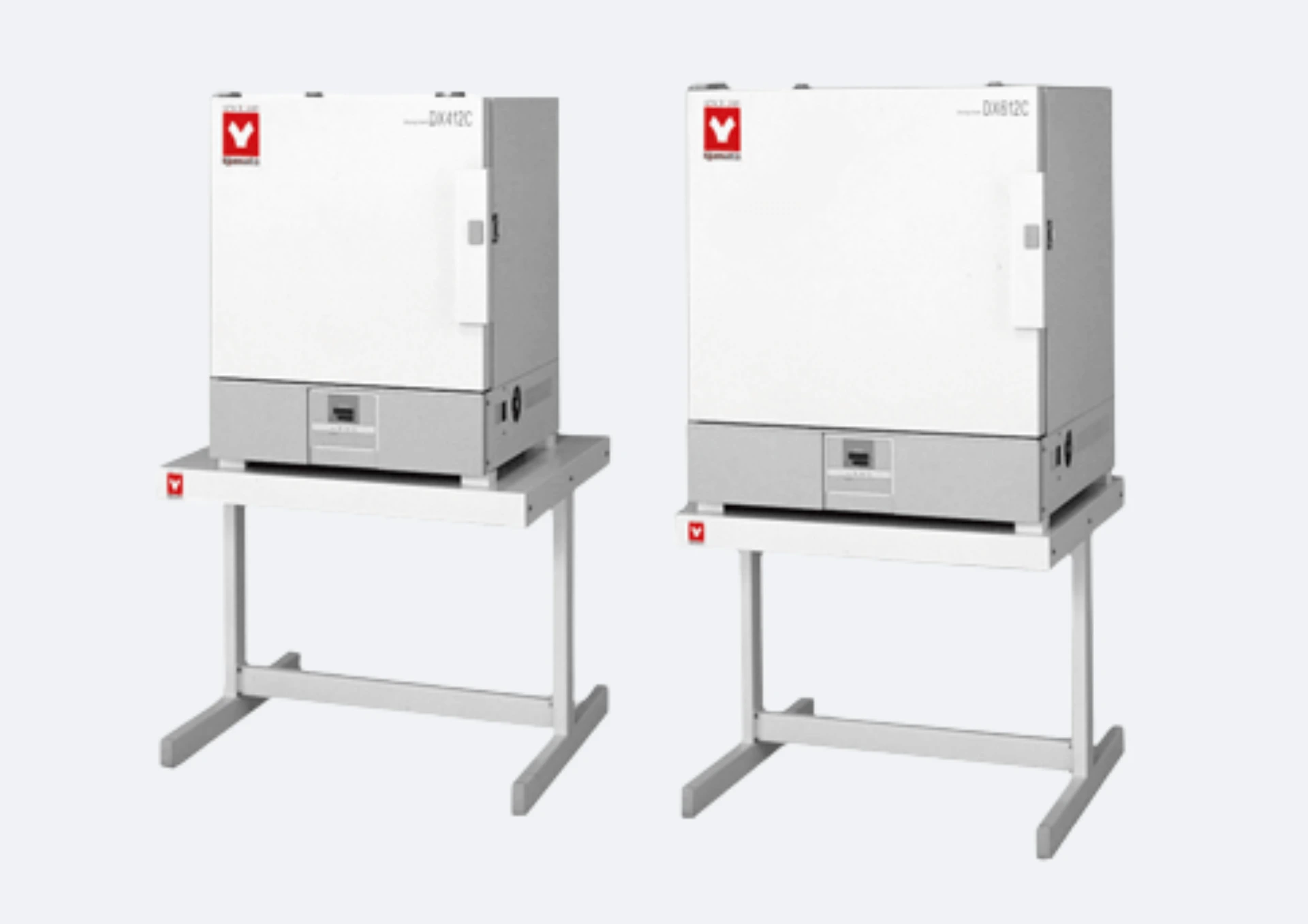

Natural Convection Ovens
- Economical and cost saving
- Easy to use and maintain
- Excellent temperature accuracy
- Calibration off-set function
Models | DX312C | DX412C | DX612C |
Operating temp. range | Room temp. +5°C to 300°C | Room temp. +5°C to 300°C | Room temp. +5°C to 280°C |
Temp. fluctuation | ±1°C (at 300°C) | ±1°C (at 300°C) | ±1°C (at 300°C) |
Internal capacity | 28L | 74L | 153L |
- Easy to operate, fixed temp. operation, auto stop operation, quick auto stop operation, and auto start operation.
- Calibration off-set as auxiliary function

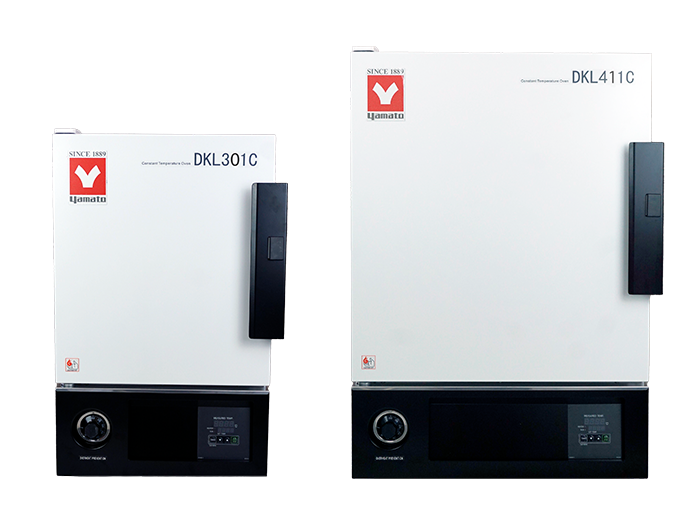

Models | DKL311C | DKL411C | DKL611C |
Operating temp. range | Room temp. +10~260°C | Room temp. +10~260°C | Room temp. +10~260°C |
Temp. fluctuation | ±0.5°C (at 26°C) | ±0.5°C (at 26°C) | ±0.5°C (at 26°C) |
Internal capacity | 27L | 90L | 150L |
Forced Convection Ovens | Basic Function, Economical
Best Seller! Forced Convection Ovens | Standard, Program Operation
Bestseller based on excellent performance and affordability with superior temperature accuracy!
- Digital setting through special function menu keys and up/down keys. 6 modes with 90 segments program controller.
- Deviation correction and key locking through submenu keys.
- Programmable PID controller for easy program settings
- Fixed setting, Quick Auto stop, Auto stop, Auto start, Program operating modes with easy control capabilities
Models | DKN313C | DKN413C | DKN613C | DKN813C | DKN913C |
Operating temp. range | Room temp. +10~260°C | Room
temp. +10~260°C | Room
temp. +10~260°C | Room temp. +10~210°C | Room temp. +10~210°C |
Temp. fluctuation | ±0.5°C (at 26°C) | ±0.5°C
(at 26°C) | ±0.5°C
(at 26°C) | ±0.5°C (at 210°C) | ±0.5°C (at 210°C) |
Internal capacity | 27L | 90L | 150L | 300L | 535L |
Observation windows (width x height in mm) | 180 x 180 | 250 x 280 | 250 x 280 | None | None |

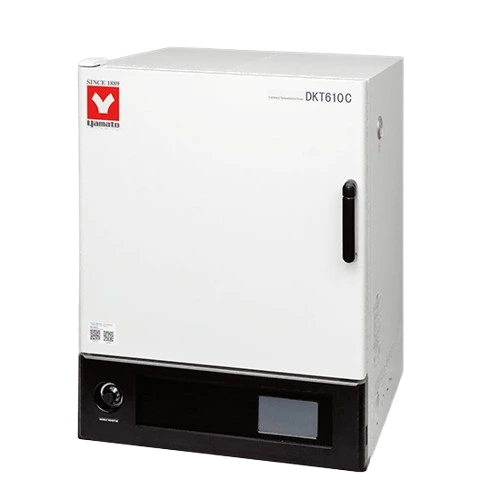

Forced Convection Ovens | Programmable, Touch Screen
- Equipped with a 7-inch touchscreen supporting three operation modes
- Features a three-level authorization login system
- Supports up to 100 programs with a maximum of 30 steps per program
- Provides long-term data storage capability
- Displays real-time temperature curves for accurate monitoring
- Automatically stops operation when the door is opened to ensure safety
Specifications:
- Operating temp. range: Room temp. +10~300°C
- Temp. Fluctuation: ±0.5°C (at 300°C)
- Temp. display method: 7-inch color touch screen
- Program mode: 100 programs, each program with a maximum of 30 segments
Models | DKT410C | DKT610C | DKT810C |
Internal capacity | 90L | 150L | 300L |

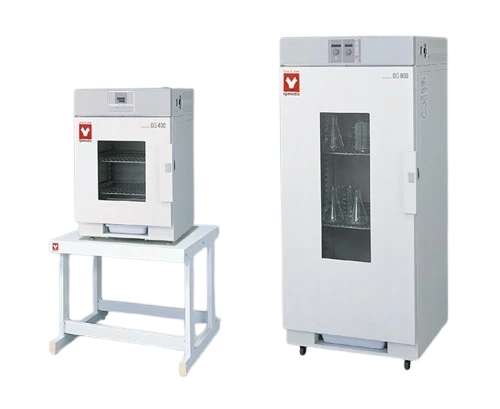

Ovens for Labware | Natural Convection, Forced Exhaust
Models | DG410C | DG450C | DG810C | DG850C |
Operating temp. range | Room temp. +5~70
°C | Room temp. +5~70
°C | Room temp. +5~70
°C | Room temp. +5~70 °C |
Temp. fluctuation | ±0.5°C (at 70°C) | ±0.5°C (at 70°C) | ±0.5°C (at 70°C) | ±0.5°C (at 70°C) |
Sterilization lamp | None | 1x15w sterilization lamp | None | 1x15w sterilization lamp |
Internal capacity | 92L | 92L | 445L | 445L |
- Large window for easy observation
- Can be used to store instruments after drying
- Highly efficient heat insulation material for both internal and external structure
- Dial setting and digital display of temperature control and timer

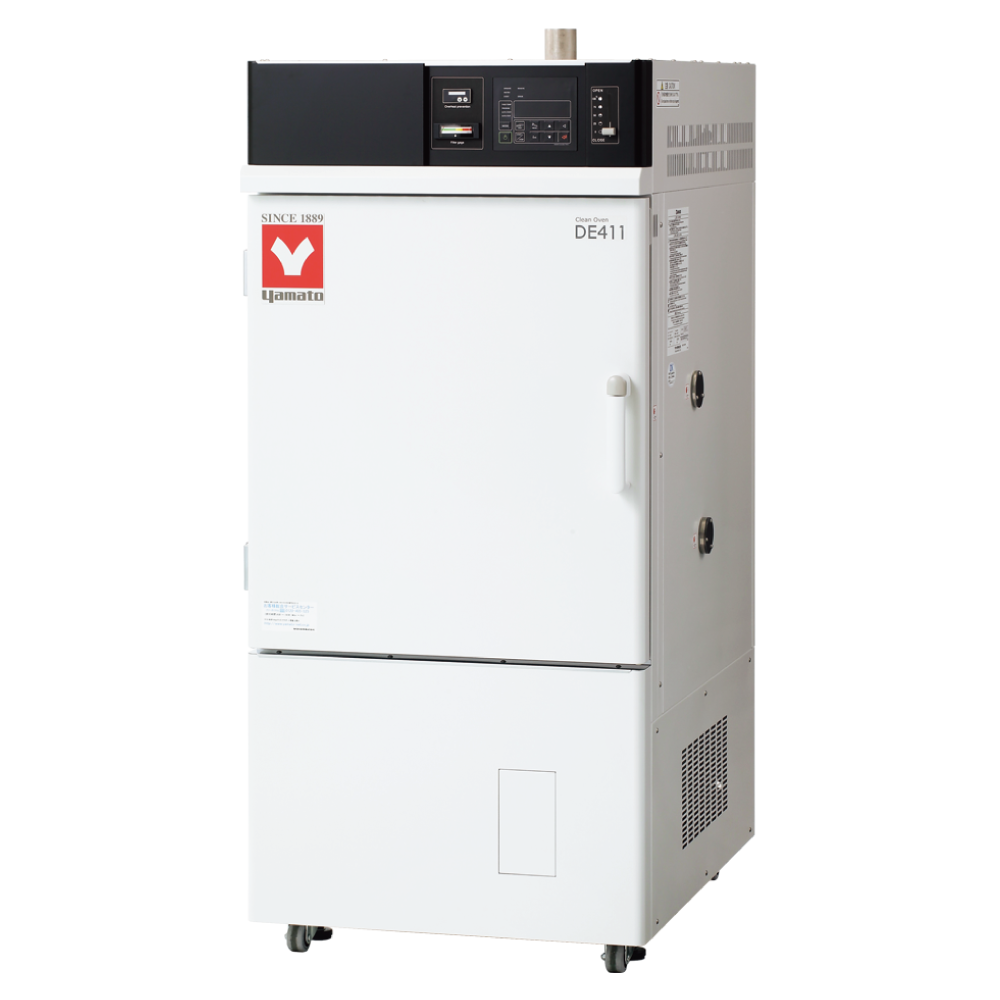

Clean Oven
For applications that require a high level of cleanliness, such as pharmaceutical, electronics, and cleanroom processes - cleanliness level100
High-efficiency air filtration system (e.g., HEPA filter)
Airtight chamber design to prevent external contamination
Precise temperature control
- Use of low-particle-generating materials to minimize contamination
DE/DT Series: Max temp. 260 /
360°°C
DES/DTS
Series: Max temp. 260 / 360°Ccleanliness level100
DEC Series: Max temp.150 °C

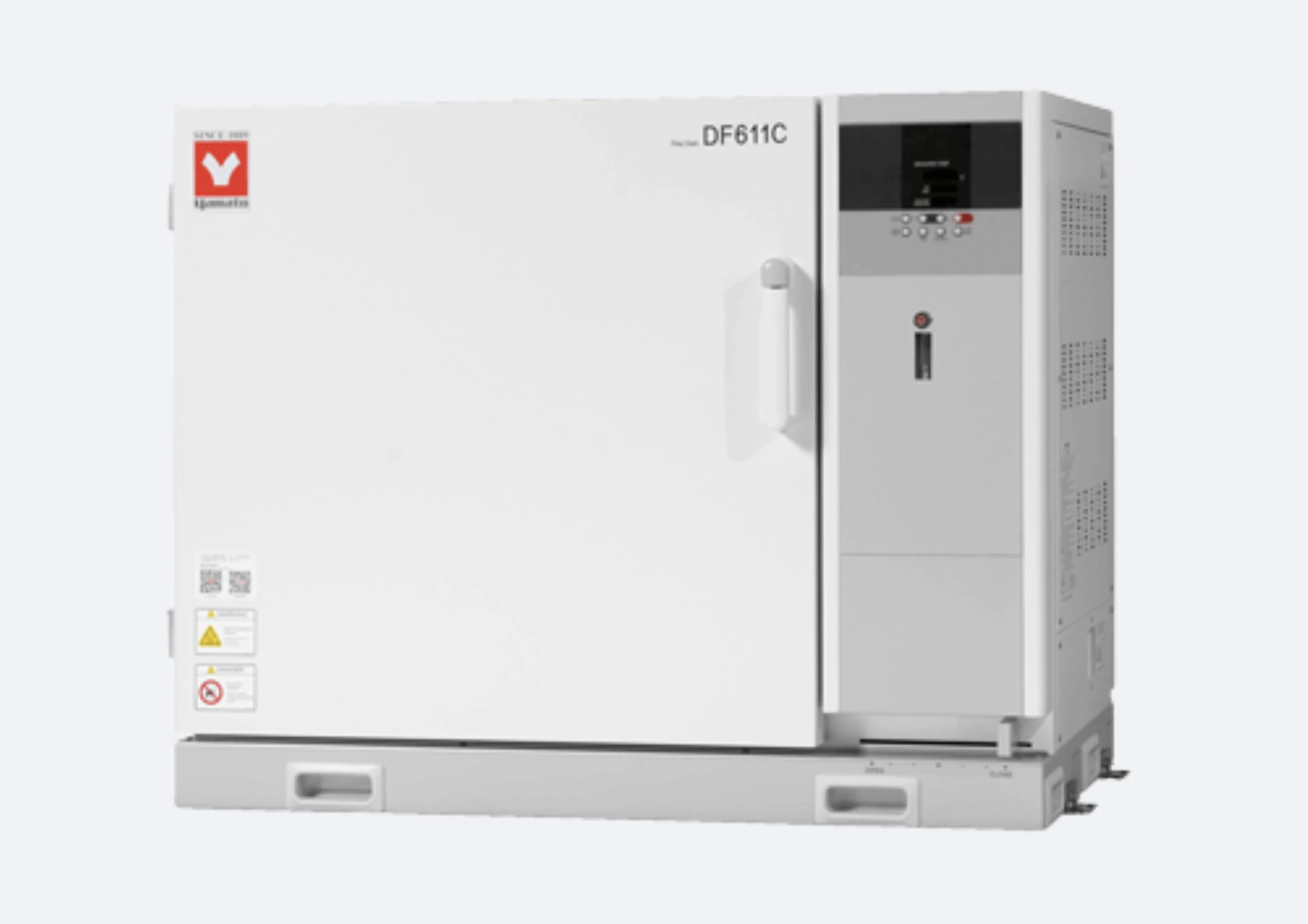

Inert Fine Ovens | Anaerobic, Oxygen Concentration 5000ppm
High-precision
constant temperature ovens for thermal treatment in an oxygen-free environment.
- Flow setting and introduction through N2 flow meter.
- Real-time display of oxygen concentration in the chamber (optional).
Models | DF611IC | DH611IC |
Operating temp. range | Room temp. +10~260°C | Room temp. +10~360°C |
Temp. fluctuation | ±0.1°C (at 260°C) | ±0.2°C (at 360°C) |
Internal capacity | 216L | 216L |

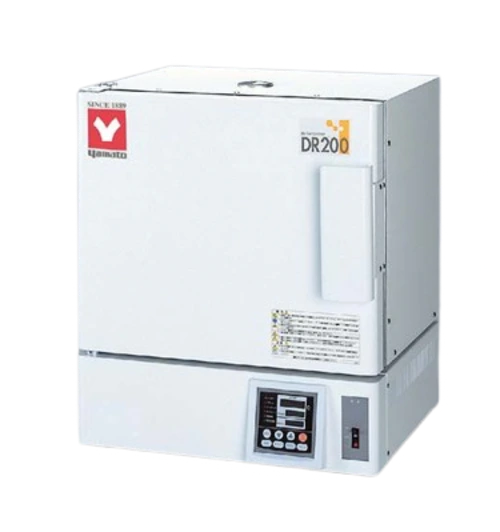

High Temp. Drying Ovens | High Temp., 700°C
High-temperature drying oven that combines electric furnace, constant temperature chamber, and drying chamber.
System:
Natural convection
Operating
temp. range: 300~700°C
Program
mode: Program operation 6 modes with a total of 90 segments (30
segments×1, 15 segments×2, 10 segments×3)
Internal
capacity: 13.75L

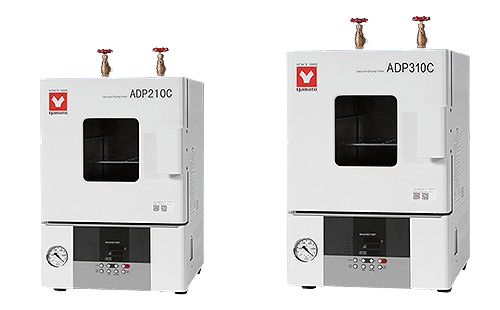

Vacuum Drying Ovens | Economical, Table Type
The door sealing strip is made of silicone in one piece, ensuring sealing performance. Easy operation allows for fixed temp. operation, rapid auto stop, auto stop, and auto start.
Specifications:
- System: Pressure reduction · wall heating
- Operating temp. range: 40~240°C
- Operating pressure range: 101~0.1KPa (760~1Torr)
Models | ADP210C | ADP310C |
Internal capacity | 10L | 27L |

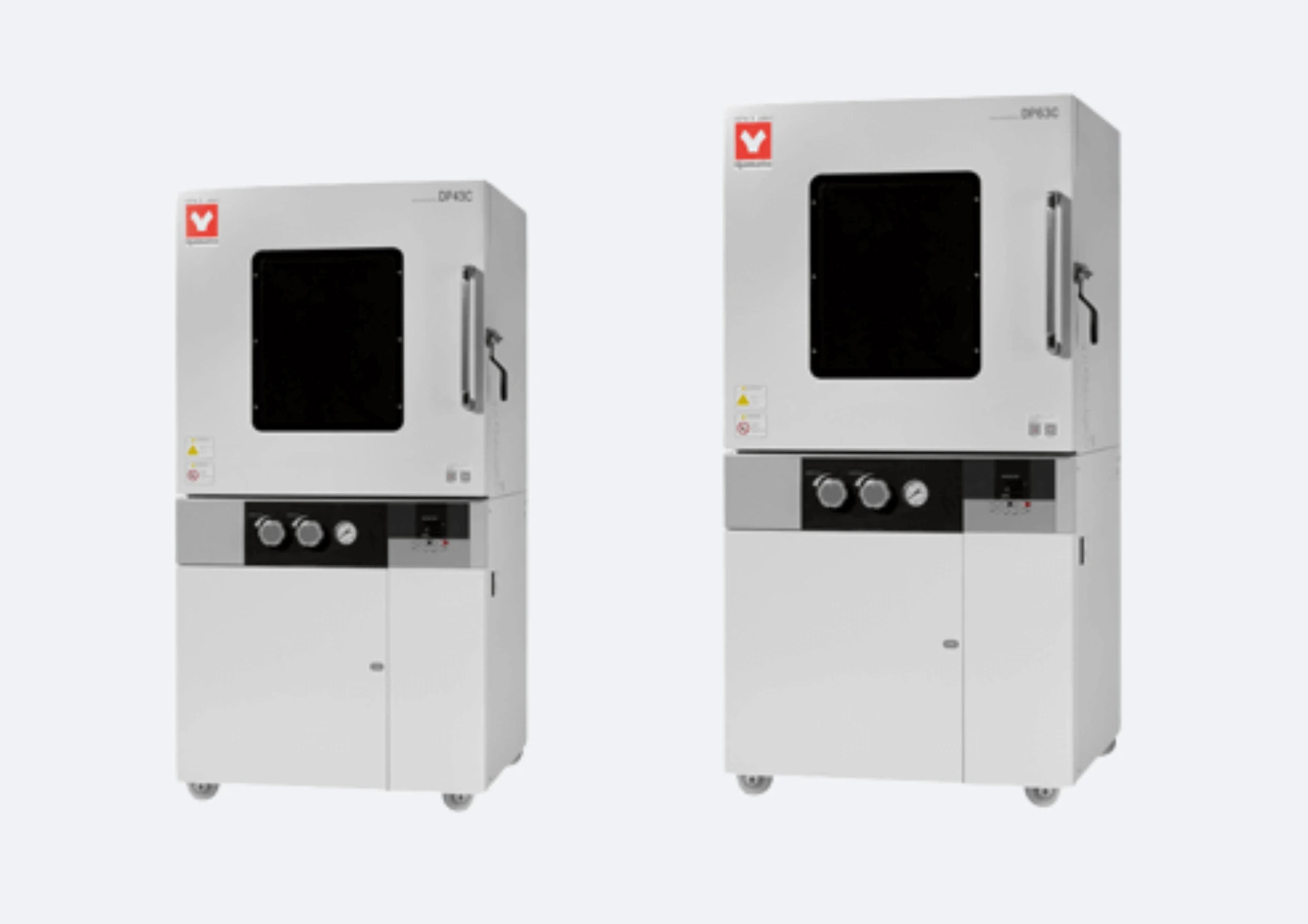

Vacuum Drying Ovens | Vacuum Standard
- Easy operation, available for fixed temp., program, quick auto stop, auto stop and auto start operations.
- Digital setting through special function menu keys and up/ down keys. 6 modes with a total of 90 segments program controller.
- Program mode: Program operation 6modes with a total of 90 segments (30 segments×1, 15 segments×2, 10 segments×3)
- Operating pressure range: 101~0.1KPa (760~1Torr)
Models | DP23C | DP33C | DP43C | DP63C | DP83C | DP103C |
Operating temp. range | Room temp. +20~240°C | Room temp. +20~240°C | Room temp. +20~20°C | Room temp. +20~20°C | Room temp. +20~20°C | Room temp. +20~20°C |
Temp. fluctuation | ±0.5°C (at 240°C) | ±0.5°C (at 240°C) | ±0.5°C (at 200°C) | ±0.5°C (at 200°C) | ±0.5°C (at 200°C) | ±0.5°C (at 200°C) |
Internal capacity | 10L | 27L | 91L | 216L | 512L | 1000L |
