Yamato Scientific Rotary Evaporators, Baths and Circulators

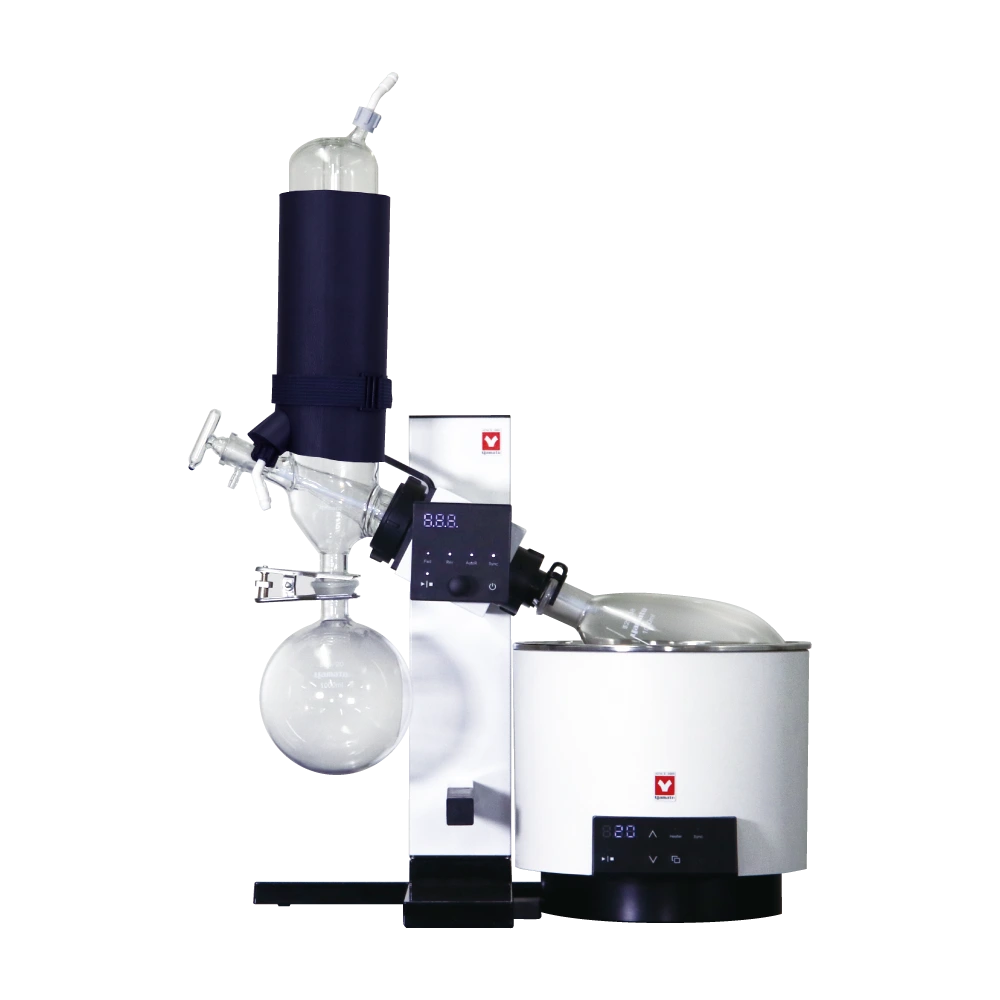

Rotary Evaporator
- Easy height adjustment with jack handle
- Glass set and bath can switch left/right
- Simple to use, wide speed range
- Durable vacuum seal, prevents liquid buildup
- Neat AC adapter storage
|
Model |
RE212 |
|
Condenser Type |
Diagonal) / Vertical |
|
Rotation number control range |
5 - 315rpm |
|
Flask size |
Up to 2 L |
|
Digital display |
Digital display |
|
Motor lift |
Manual lift |
|
Evaporation Rate |
Up to ~23 mL/min (water) |
|
Bath type |
Water Bath |
Oil Bath |
|
Temperature range |
Room Temp. +10 to 90°C |
Room Temp. +10 to180°C |
|
Temp. adjustment accuracy |
±1.0°C |
±1.5°C (water), ±2°C (oil) |
|
Bath internal material |
Stainless steel |
Water Bath/ Oil Bath

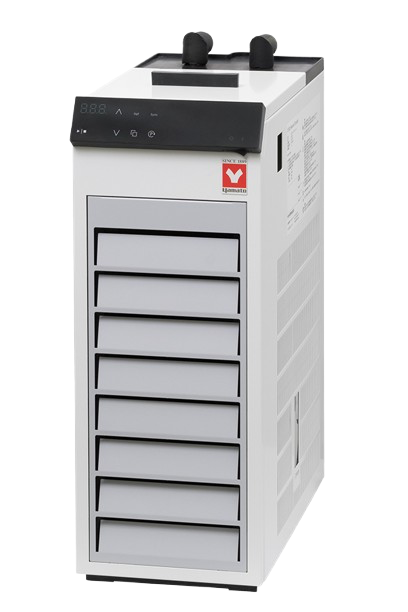

Cooling Water Circulator (Externally Closed Circulation)
- Easy maintenance of the inlet filter
- New user-friendly controller
- Stress-free circulation connection
- Safe drainage of condensation water
|
Model |
CF312L-D |
|
Circulation type |
Externally Closed Circulation System |
|
Operating temperature range |
5 to 35 °C |
|
Temperature control range |
-20 °C to 30 °C |
|
Max. flow rate |
Approx. 10 L/min |
|
Temperature control |
Refrigerator ON/OFF control |
|
Inner tank capacity |
Approx. 3.9L (liquid volume 3.5L) |
|
Inner tank material |
Stainless steel |

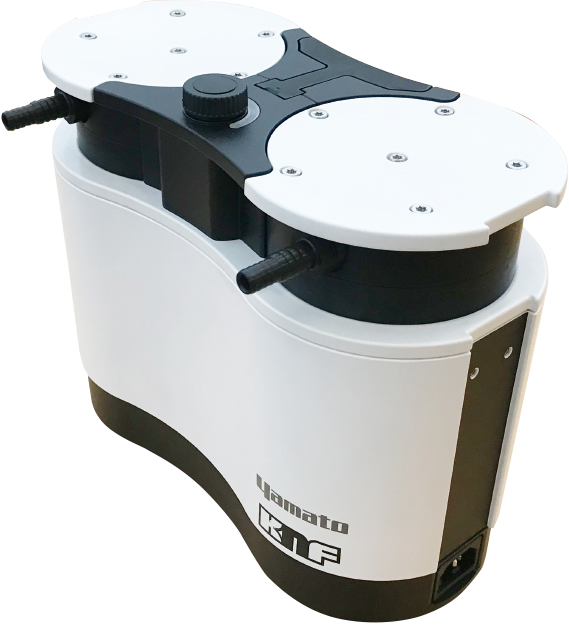

Model:
N820G
Effective pumping speed: 9 to 20 L/min. (manual volume control)
Intake pipe diameter: O.D. 10.6mm / 9mm (2-stages)
Wetted material: PTFE/FFPM
